GEJS Alcon 5-16
Boiler

Biomass Boilers

GEJS Alcon 5-16 Boiler - 16/20 kW Thermal power

Burns wood pellets, wooden chips, solid fuel etc. Available with stoker for a complete firing system

Features

ires with almost anything, incl. solid fuel. Large combustion chamber with easy access. Direct ash discharge through drawer. Optimal firing economy. No small, difficult smoke pipes to be cleaned.

Specifications

Thermal Power	16/20 kW
Fuel	Wood pellets, wooden chips, solid fuel, etc.
Wood Length (Vertical Firing)	42 cm
Wood Length (Horizontal Firing)	42 cm
Dimensions (W × H × D)	44 × 120 × 70 cm
Combustion Chamber (W × H × D)	29 × 58 × 42 cm
Firing Inlet	29 × 22 cm
Boiler Temperature	60°C to 90°C
Burner Box Plate Thickness	6 mm
Height to Centre Smoke Exit	100 cm
Smoke Door Diameter	Ø155 mm (Outer)
Flow / Return	1″
Minimum Chimney Draft	14 Pa (2.2 mmWS)
Water Content	120 Litres
Weight (Approx.)	220 kg
Recommended Storage Tank	Approx. 1000 Litres
Test Pressure	15 mWS, 1.5 atm
Stoker Firing Position	Right or Left Side

Choosing the right boiler

The size of the kW of the boiler is chosen by looking at the size of the house in m2, the age of the house and whether the house is detached, semi-detached, in a town or in the country. The age of the house. e.g. a house aged 20-30 years will often use about 1 kw per 10 m2 so e.g. 180 m2 house = 18 kw. Newer houses use less and older houses use more.

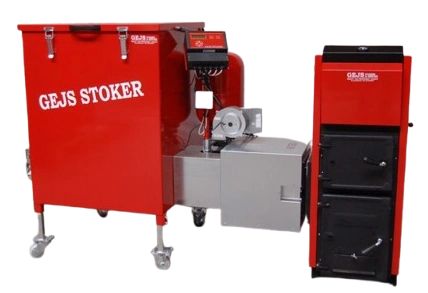

Complete automatic firing systems

A two piece system comprising boiler and stoker means easier accessibility for cleaning and maintenance.
