Boilers are in operation in Scandanavia, Europe, Aisa and North America
A selection of boilers that range from home heating units through to industrial heat and energy facilities.

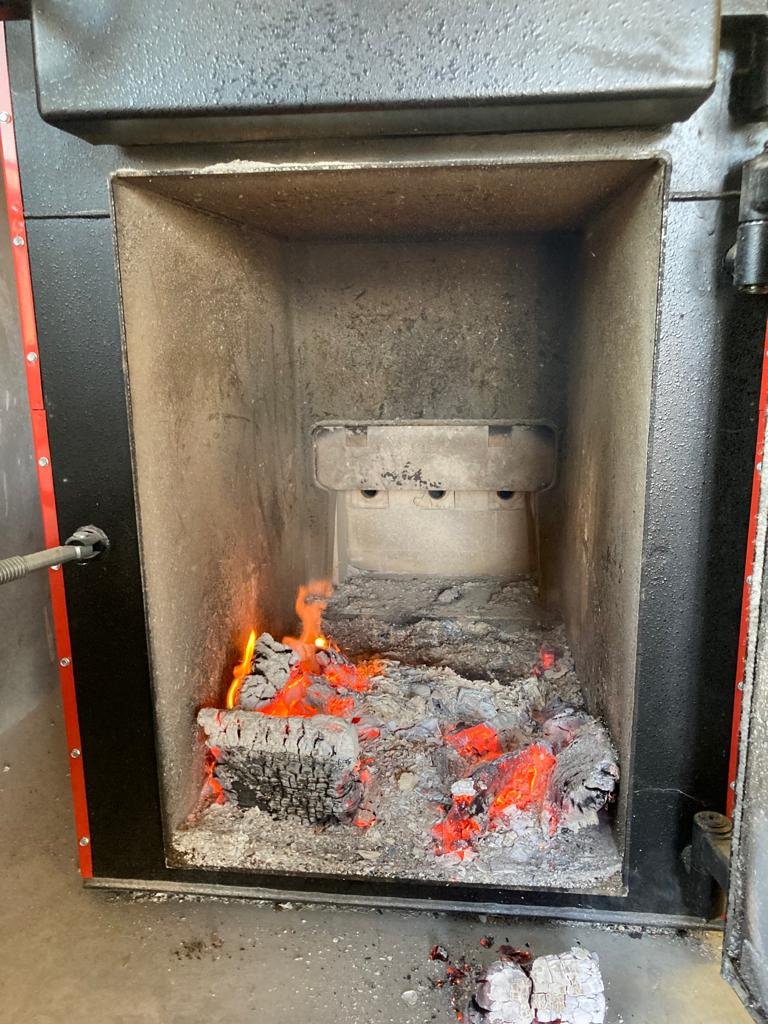

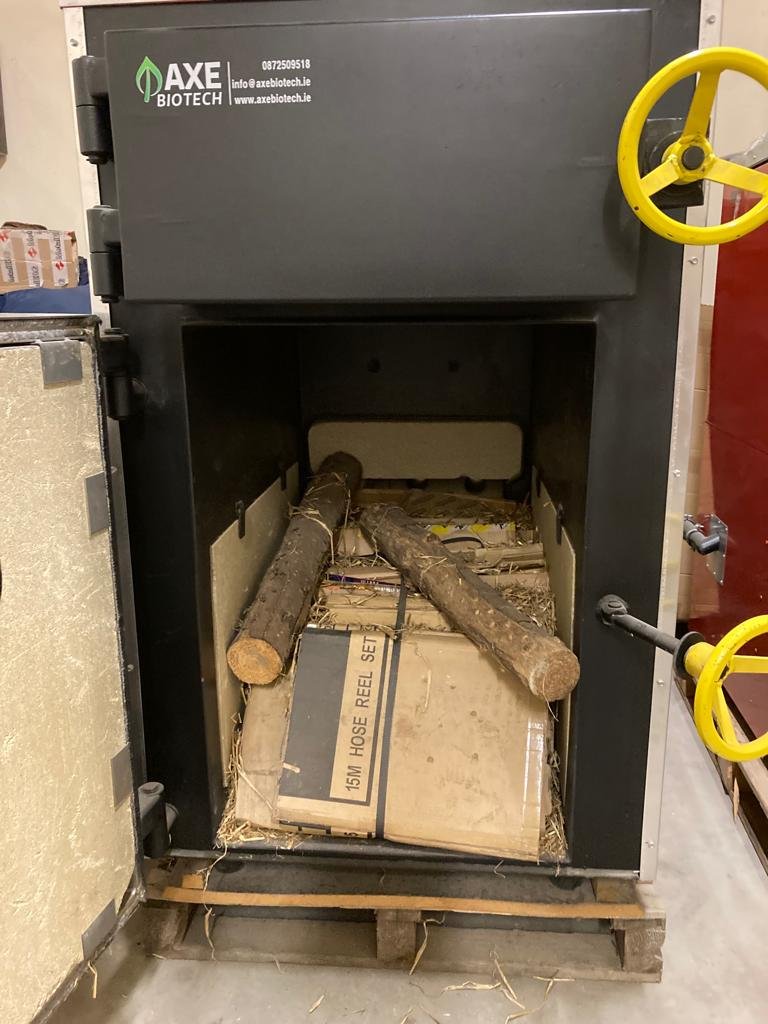

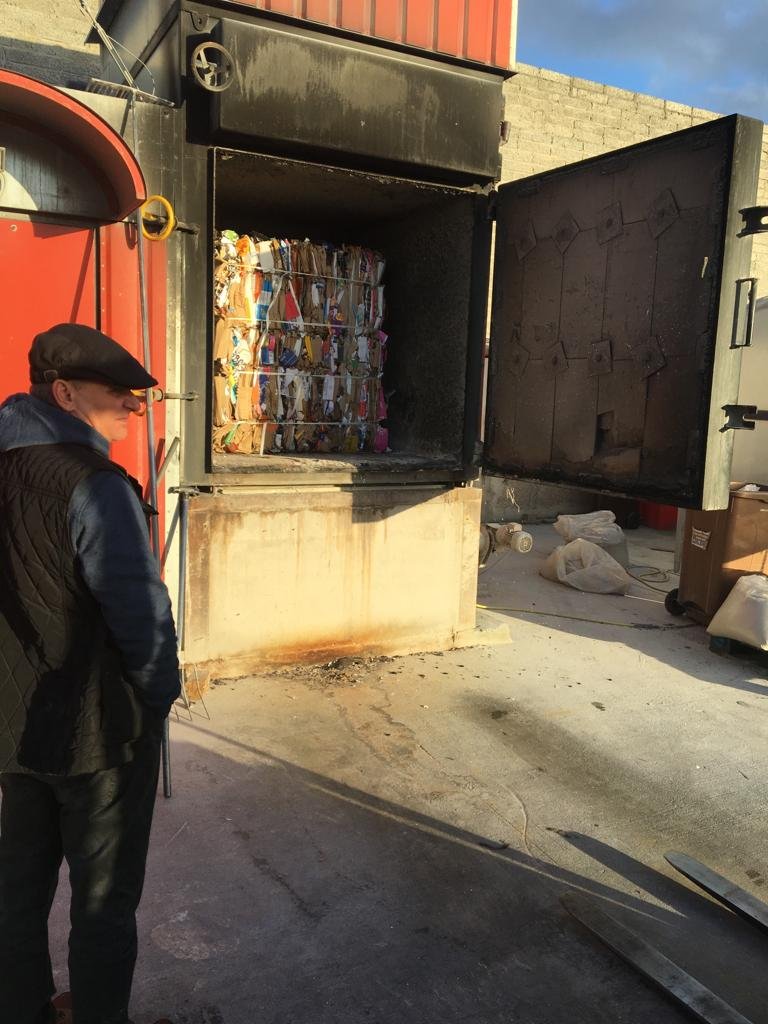

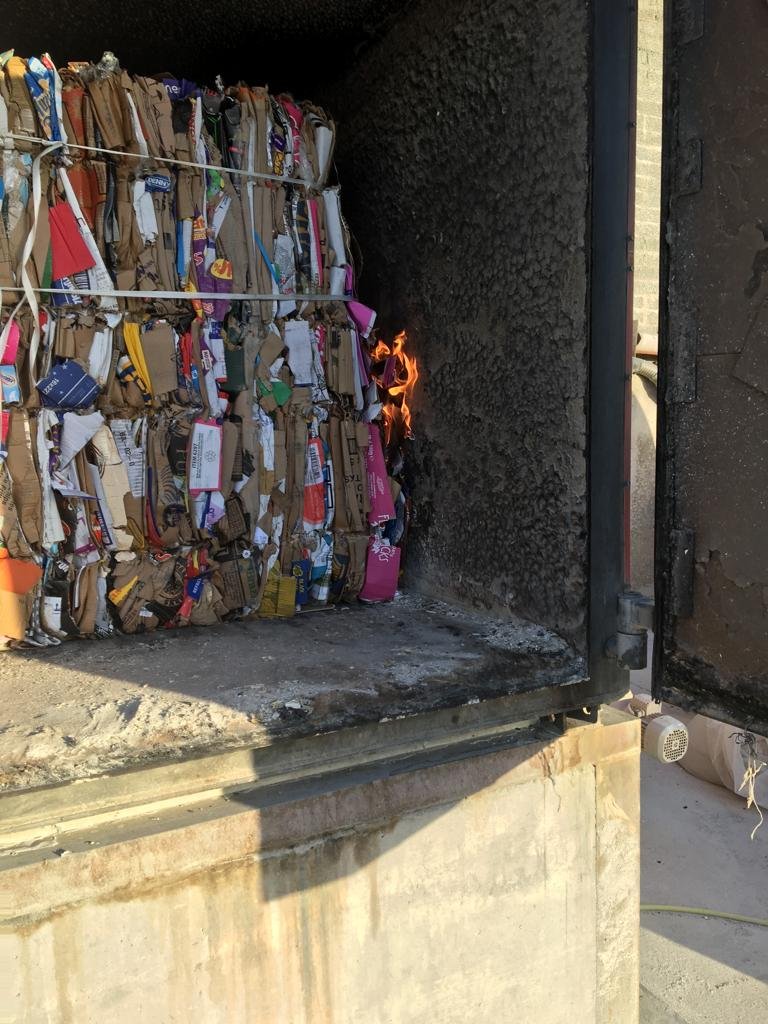

While these boilers have been designed for burning straw they can also burn straw, wood, cardboard and textile waste, sawdust and other biomass.

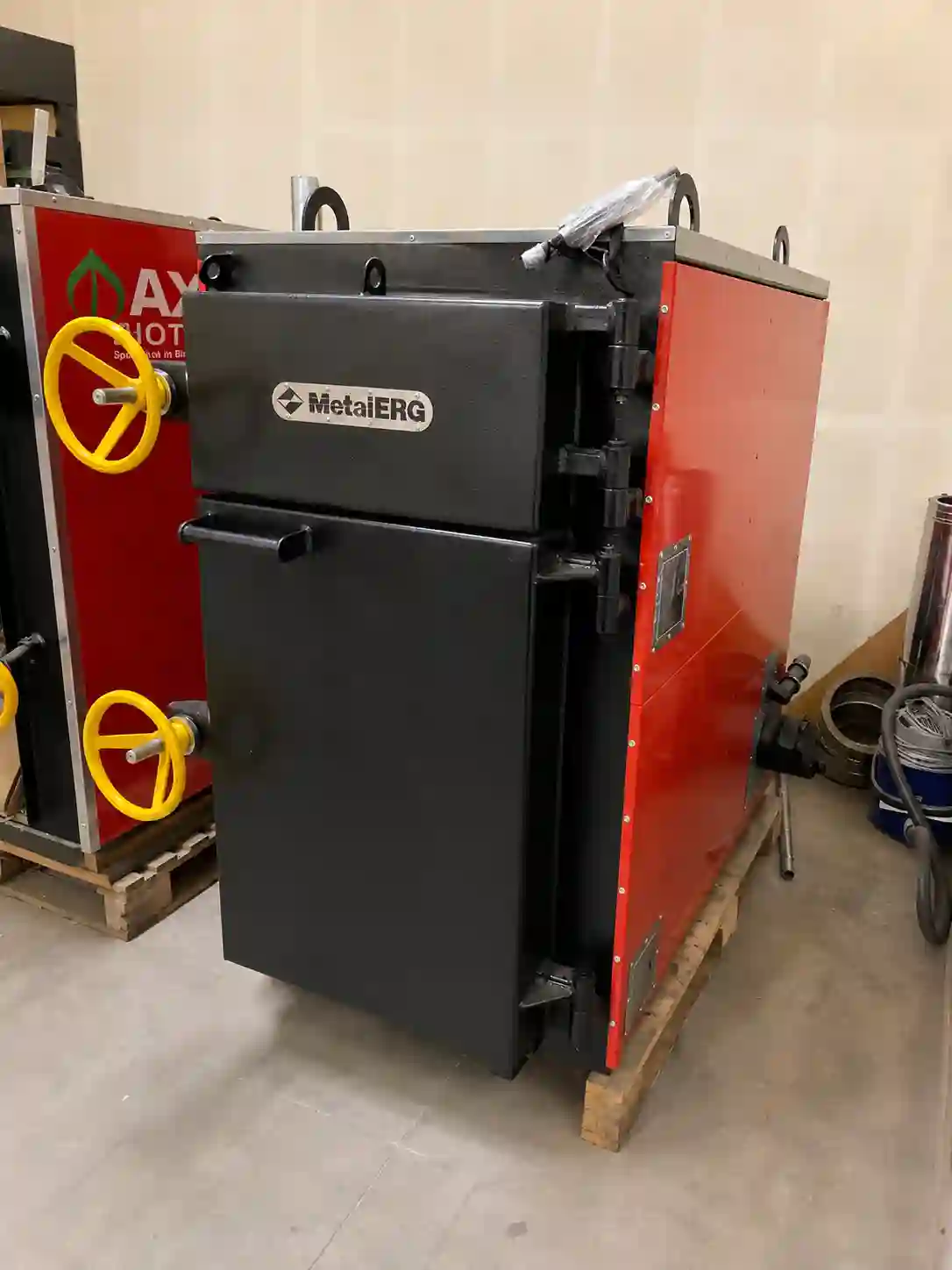

EKOPAL straw boilers have been in production since the late 1980s and are in operation all over Scandinavia and around Continental Europe.
| Boiler Type | Heating Power (kW) | Quantity of Straw in One Charge | Cubature of Heated Rooms (m³) | Boiler Weight (kg) | Minimum Capacity of Accumulation |
|---|---|---|---|---|---|
| RM 5 | 40 | 3 bales (80×40×40 cm) | 600 | 1500 | 2500 |
| RM 10 | 65 | 4 bales (80×40×40 cm) | 1200 | 1600 | 3000 |
| RM 20 | 70 | 4 bales (80×40×40 cm) | 1300 | 2000 | 3000 |
| RM 30 | 100 | 6 bales (80×40×40 cm) | 1700 | 2500 | 5000 |
| RM 40 | 180 | 12 bales (80×40×40 cm) or 1 round bale (125–140 cm) |
3000 | 3000 | 8000 |
| RM 01 | 300 | 1 round bale (125–170 cm) or approx. 30 bales (80×40×40 cm) |
6000 | 5200 | 10000 |
| RM 02 | 400 | 1 round bale (125–170 cm) or approx. 30 bales (80×40×40 cm) |
8000 | 5600 | 15000 |
| RM 0,3-2 | 495 | 1 round bale (125–170 cm) or 2 bales (180×80×120 cm) or approx. 35 bales (80×40×40 cm) |
10000 | 6500 | 20000 |
| RM 0,3-3 | 600 | 2 round bales (125 cm) or 2 bales (250×80×120 cm) or approx. 45 bales (80×40×40 cm) |
12000 | 12000 | 25000 |

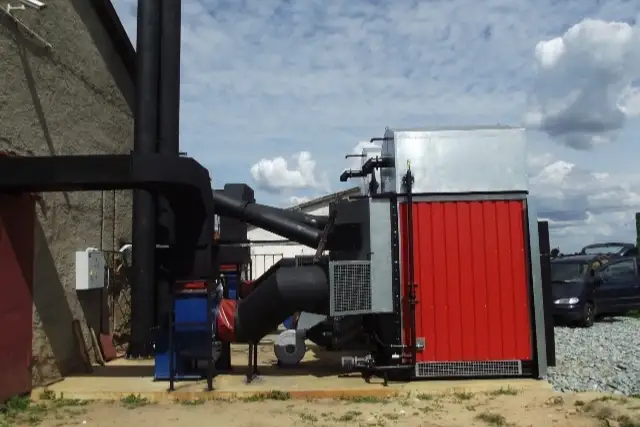

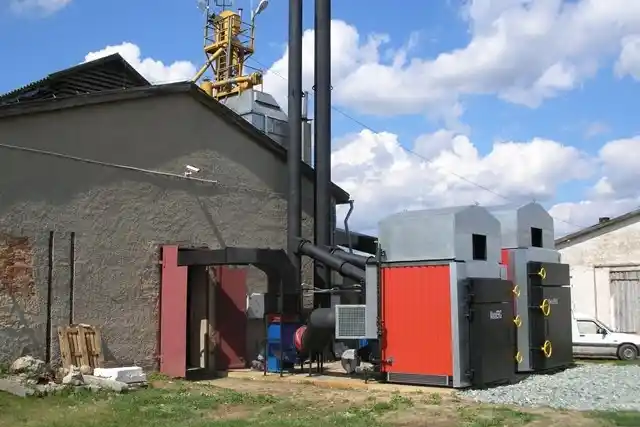

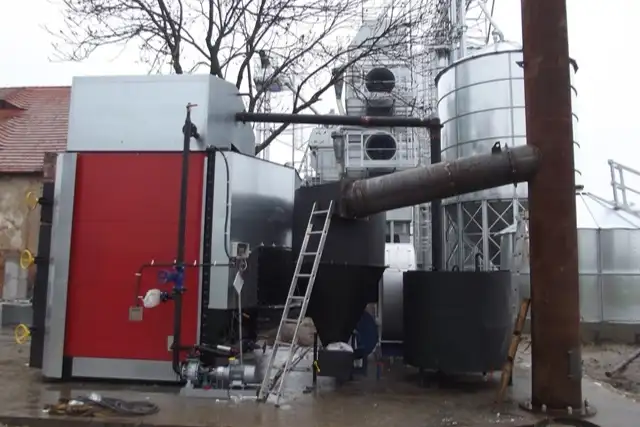

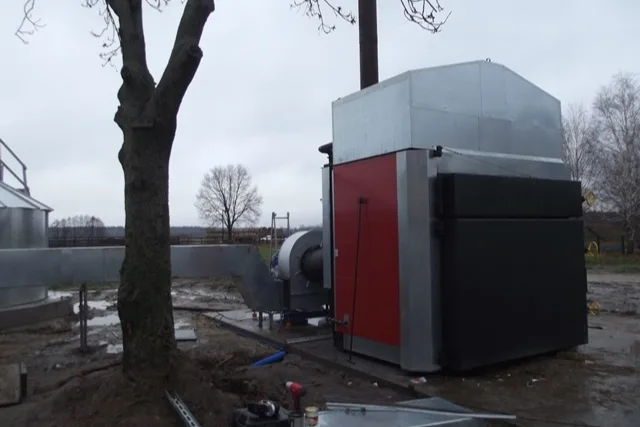

Axe Biotech Boilers Ltd offer a wide range of air heaters and dryers from MetalERG (EKOPAL) ranging in output from 60kW to 1000kW – a selection of boilers that will heat air up to 130° centigrade.

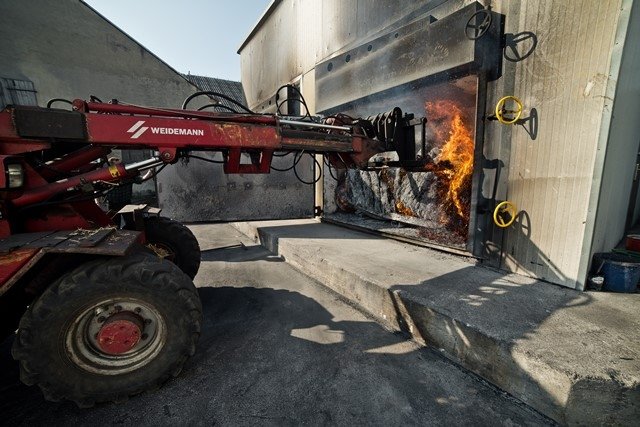

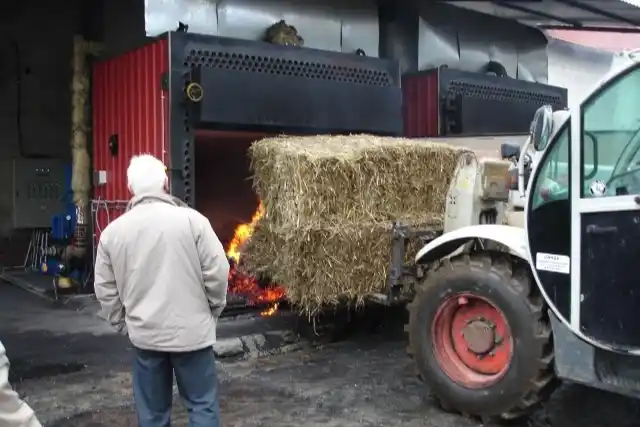

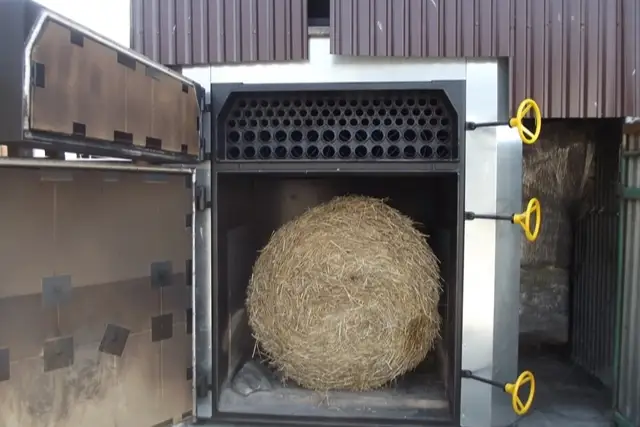

These boilers have been designed to use every type of biomass from straw bales (oval) 120-180 cm, straw in high density bales with dimensions 250x120x80 cm, corn straw, rape straw, wood and wooden chips.
Please don’t hesitate to contact us for more information about MetalERG (EKOPAL) Air Heaters.
| S-100 | S-140 | S-300 | S-400 | S-750 | S-1000 | |
|---|---|---|---|---|---|---|
| Power | 100 kW | 140 kW | 300 kW | 400 kW | 750 kW | 1000 kW |
| Max. air temperature with efficiency of 36 thousand m³/h | 120 °C | 120 °C | 120 °C | 120 °C | 120 °C | 120 °C |
| Heater width | 1400 mm | 1500 mm | 2080 mm | 2300 mm | 2444 mm | 3664 mm |
| Heater height | 2600 mm | 3200 mm | 3640 mm | 3700 mm | 4537 mm | 4570 mm |
| Heater length | 2300 mm | 2500 mm | 3256 mm | 3200 mm | 3342 mm | 3840 mm |
| Combustion chamber width | 900 mm | 900 mm | 1500 mm | 1500 mm | 2000 mm | 2900 mm |
| Combustion chamber height | 1000 mm | 1350 mm | 1550 mm | 1550 mm | 1950 mm | 1900 mm |
| Combustion chamber length | 1000 mm | 1150 mm | 1500 mm | 1550 mm | 1540 mm | 1580 mm |
| Weight | 2,800 kg | 3,200 kg | 9,000 kg | 9,500 kg | 11,000 kg | 16,000 kg |
| The amount of liquid | ~1000 kg | ~2000 kg | ~3000 kg | ~3500 kg | ~4000 kg | ~5000 kg |
| Efficiency of the heater | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
